GLF76121

Nano Current Consumed Integrated Load Switch with Reset Timer

首页 产品 系统电源保护芯片 GLF76121
产品特性
  • Ultra-Low ISD

    7 nA Typ @ 3.6VBAT

  • Ultra-Low IQ

    3 nA Typ @ 3.6VBAT

  • Low RON

    34mΩ Typ @ 3.6VIN

  • IOUT Max

    2A

  • Supply Voltage Range

    2.5 V to 5.5 V ; 6Vabs max

  • Reset Delay Time(/SRO Hold Time)

    5.80s

  • Reset Pulse Period

    360ms

  • Turn-Off Delay Time

    5.80s

  • Controlled Output Rise Time

    1ms @ 3.6VBAT

  • Integrated Output Discharge Switch When Disabled

  • Operating Temperature Range

    -40 to 85 °C

  • HBM / CDM

    6kV / 2kV

  • Ultra-Small

    0.97 mm x 1.47 mm x 0.55mm

产品描述

The GLF76121 is an ultra-efficient IQSmartTM load switch with an integrated reset timer for wearables and IoT devices.

The /SRO pin offers a true reset function enabling the load switch to completely disconnect the load from the input battery after a reasonable long delay time. After the reset period, the main switch of the GLF76121 reconnect the output load to the input battery for normal operation. The GLF76121 offers 5.8 second delay time before the 360 ms reset duration.

The ultra-low IQ enables direct interface to lower voltage chipset without any external circuit and maintains lower power consumption. The OFF input pin allows the GLF76121 to achieve complete shutdown with total downstream standby current of 7nA typical. With the switch placed between a battery and system, this switch can help to significantly extend system battery life in mobile devices during shipping or periods of extended off time.

The GLF76121 help to reduce power consumption with the best in class RON and a breakthrough on state IQ of only 3 nA typical when the switch is on.

The GLF76121 integrated 1ms slew rate control can also enhance system reliability by mitigating bus voltage swings during switching events. Where uncontrolled switching can generate high inrush current that results in voltage droop and/or bus reset events, the GLF slew rate control specifically limits inrush current during turnon to minimize voltage droop. The output discharge function makes output voltage off quickly during the reset period

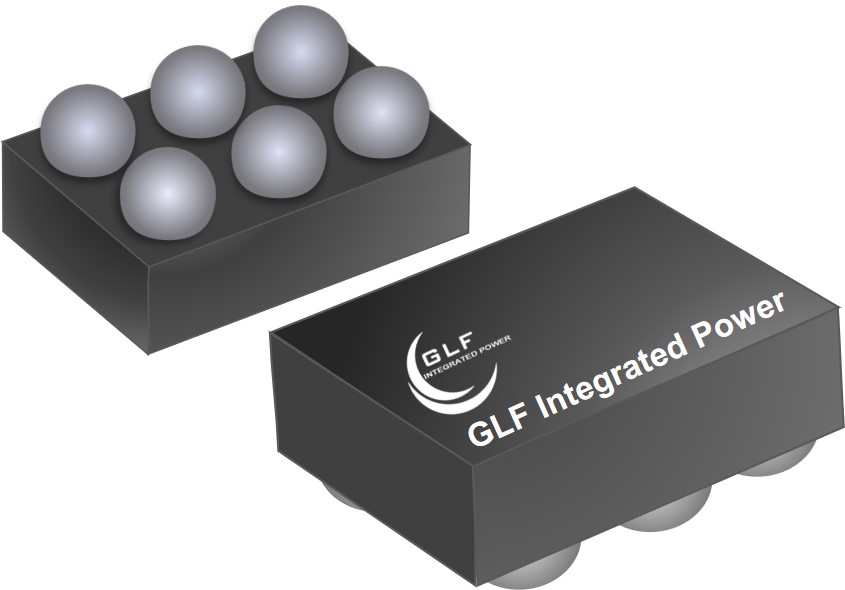

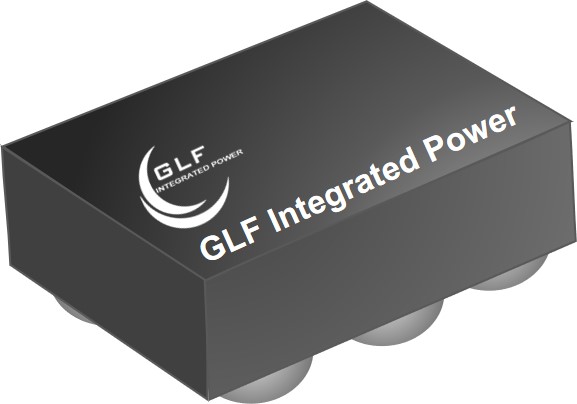

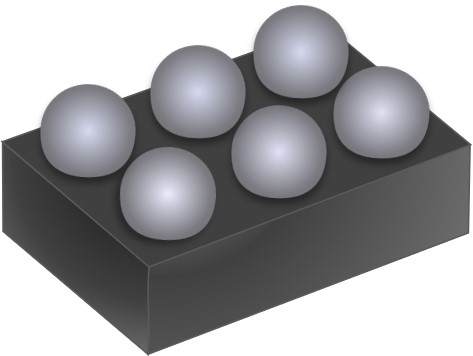

The GLF76121 is available in 0.97 mm x 1.47 mm x 0.55mm wafer level chip scale package (WLCSP).
