GLF1501

3 A Ultra Low Current Consumption N-channel Load Switch

首页 产品 电源负载开关芯片 GLF1501
产品特性

  • Supply Voltage Range

    0.85 V to 3.6 V

  • Low RON

    52 mΩ Typ at Supply Voltage Range

  • IOUT Max

    3 A

  • Ultra-Low IQ

    50 nA Typ at 0.85 VIN ; 60 nA Typ at 1.0 VIN ; 120 nA Typ at 1.5 VIN

  • Integrated Slew Rate Control Driver

  • Internal EN Pull-Down Resistor

  • Integrated Output Discharge Switch

  • HBM / CDM

    4kV / 2kV

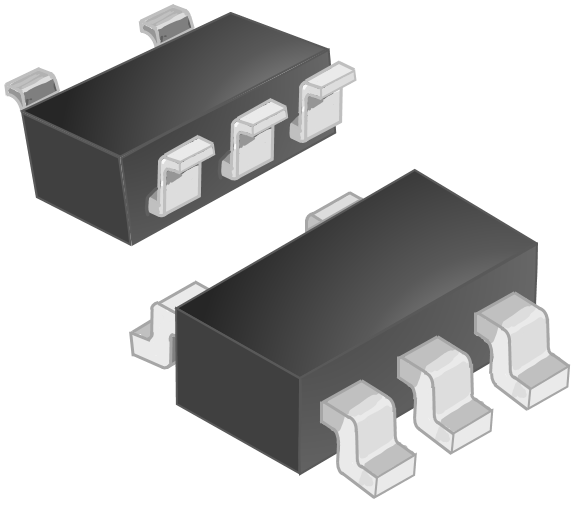

GLF1501
产品手册
样品申请
产品描述

The GLF1501 load Switch is a fully integrated 3 A NMOS load switch with IQSmartTM advanced technology. The device is targeted for the mobile computing and data storage markets as a high performance, low-cost solution for load switch applications.


The GLF1501 has a constant low on-resistance of 52 mΩ at room temperature. The fixed rise time helps prevent undesirable inrush current when turned on and the internal EN pin pulldown resistor ensures the device remains in the shutdown mode when disabled. In shutdown mode the GLF1501 draws only 6 nA typical at 3.6 V input supply voltage.


The GLF1501 features a reverse current blocking protection. When the GLF1501 is disabled, it prevents reverse current flowing from the output to the input source.
