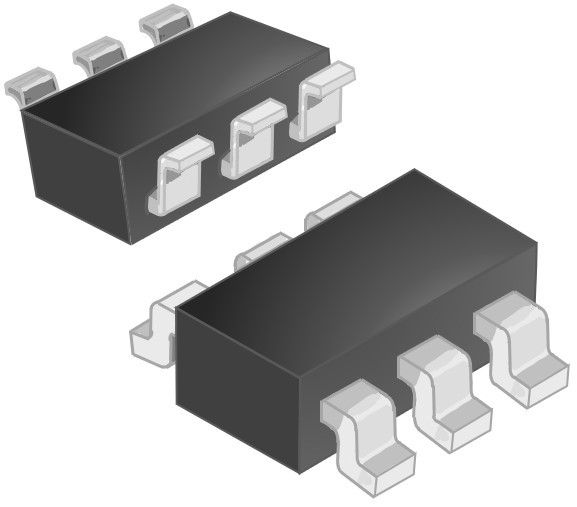

GLF4020

High Efficiency Power Multiplexer Switch With Auto & Manual Input Selection

首页 产品 电源路径转换芯片 GLF4020
产品特性
  • Two-Input and Single-Output Power Multiplexer Switch

  • Automatic and Manual Input Selection Mode

  • Supply Voltage Range

    2.5 V to 6.5 V 7 Vabs Max

  • RON

    92 mΩ Typ. at 6.5 VIN1 or VIN2 ;105 mΩ Typ. at 4.5 VIN1 or VIN2

  • 2 A Continuous Output Current Capability Per Channel

  • Ultra-Low Supply Current at Operation

    IQ: 4 µA Typ at 6.5 VIN

  • Ultra-Low Stand-by Current

    ISD : 6 nA Typ at 6.5 VIN

  • Smart Control Pins

    IEN and ISEL : 3 nA Typ at VEN or VSEL > VIH ; REN and RSEL : 500 kΩ Typ

  • No Cross Conduction Between Two Inputs

  • Reverse Current Blocking when Disabled

  • Operating Temperature Range

    - 40 to 85 °C

  • HBM / CDM

    6kV / 2kV

产品描述

The GLF4020 is an integrated power multiplexer switch with dual independent power switches connected to a single output pin to enable seamless transition between two input sources.

The GLF4020 provides an automatic selection mode as well as a manual selection mode by the combination of the logic input pins of EN and SEL. The EN input pin is used along with the select (SEL) input pin to select the automatic switching function, select VIN1 only, select VIN2 only, or turn both switches off. In the automatic selection mode, the GLF4020 automatically selects the higher input voltage source out of two input DC power supplies.

The GLF4020 features an ultra-efficient IQSmartTM technology that offers quiescent current (IQ) and shutdown current (ISD) in the industry. Low RON reduces conduction losses while low IQ and ISD solutions help designers to reduce parasitic leakage current, improve system efficiency, and increase battery lifetime.

The GLF4020 blocks any cross-conduction current between two input power sources. When the switch is disabled, the GLF4020 prevents the reverse current to the input source from the output at any higher Vout than Vin condition.
