Input Range
2.5 V to 5.5 V
Programmable Output Constant Current Limit
Range: 40 mA ~ 2.2 A
Low RON
56 mΩ Typ. @ 5 VIN
Ultra-Low IQ
20 uA Typ. @ 5.0 VIN
Ultra-Low ISD
50 nA Typ. @ 5.0 VIN
Under Voltage Lockout Protection
Output Voltage Slew Rate Controlled
Reverse Current Blocking Protection
Short Circuit Protection
Deglitched Fault Flag Indication
Thermal Shutdown Protection
IEC 62368-1:2018 CB Certification No. FI-52066
|

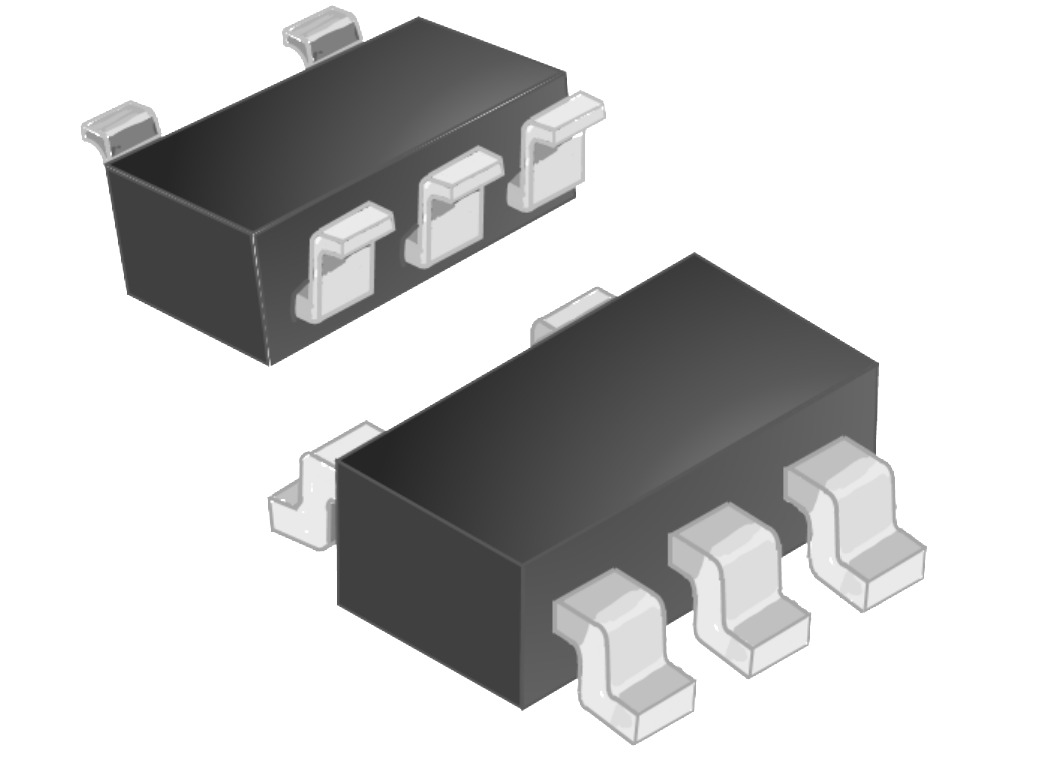

The GLF2310A-T1G7 is an advanced technology fully integrated power switch for applications required for precision output current limiting. The GLF2310A-T1G7 features also various protection functions such as under voltage lockout, reverse current blocking (RCB), short circuit protection, and thermal shutdown. |
|
The GLF2310A-T1G7 provides a built-in output voltage slew rate control to limit the inrush current and voltage surges. The FLGB output pin can be used to send a signal of fault events to the system controller. The integrated thermal shutdown (TSD) insures complete protection for the switch during output current limit and short circuit conditions. The GLF2310A-T1G7 is an ideal switch for USB power supply. |
