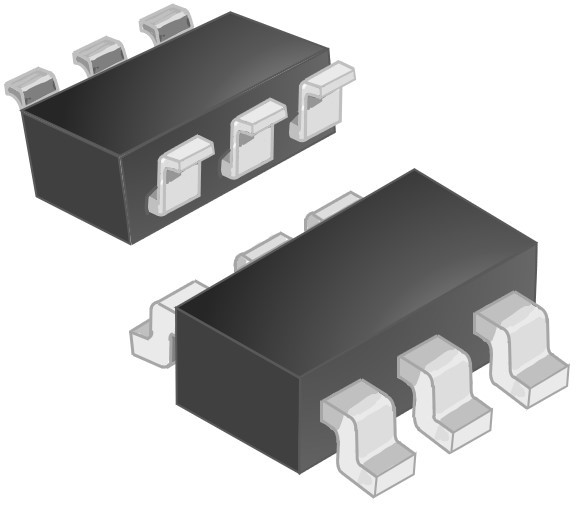

GLF2311A-T2G7

High Precision Current Limit Power Switch

首页 产品 过流保护芯片 GLF2311A-T2G7
产品特性

  • Input Range

    2.5 V to 5.5 V

  • Programmable Output Constant Current Limit

    Range: 40 mA ~ 2.2 A

  • Low RON

    56 mΩ Typ. @ 5 VIN

  • Ultra-Low IQ

    20 uA Typ. @ 5.0 VIN

  • Ultra-Low ISD

    50 nA Typ. @ 5.0 VIN

  • Under Voltage Lockout Protection

  • Output Voltage Slew Rate Controlled

  • Reverse Current Blocking Protection

  • Short Circuit Protection

  • Deglitched Fault Flag Indication

  • Integrated Output Discharge Switch

  • Thermal Shutdown Protection

  • IEC 62368-1:2018 CB Certification No. FI-52066

GLF2311A-T2G7
产品手册
样品申请
产品描述

The GLF2311A-T2G7 is an advanced technology fully integrated power switch for applications required for precision output current limiting. The GLF2311A-T2G7 features also various protection functions such as under voltage lockout, reverse current blocking (RCB), short circuit protection, and thermal shutdown.


The GLF2311A-T2G7 provides a built-in output voltage slew rate control to limit the inrush current and voltage surges. The FLGB output pin can be used to send a signal of fault events to the system controller. The integrated thermal shutdown (TSD) insures complete protection for the switch during output current limit and short circuit conditions. The GLF2311A-T2G7 is an ideal switch for USB power supply.
