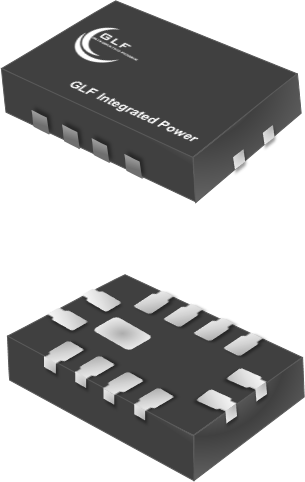

GLF4033A

产品特性

Two-Input and Single-Output Power Multiplexer IC
Manual Input Selection Mode
Wide Input Range

VIN1 & VIN2 = 2.8 V to 10 V
I_OUT Max

4 A Per Channel, VIN1 and VIN2
Low R_ON

24 mΩ Typ
Low Quiescent Current, I_Q

45 µA Typ. at V_IN1 & V_IN2 = 3 V ; 59 µA Typ. at V_IN1 & V_IN2 = 5 V ; 65 µA Typ. at V_IN1 & V_IN2=9 V
Low Shutdown Current, I_SD

11 µA Typ. at V_IN1 & V_IN2 = 3 V ; 13 µA Typ. at V_IN1 & V_IN2 = 5 V ; 15 µA Typ. at V_IN1 & V_IN2=9 V
No Cross Conduction Between Two Input Sources
Programmable Over-Voltage Protection
Thermal Shutdown Protection
State Indication Function
Operating Temperature Range

- 40 °C to 85 °C

产品手册

样品申请

产品描述

The GLF4033A is an integrated power multiplexer IC featuring dual independent power switches connected to a single output, enabling seamless transitions between two input power sources. The device supports a manual selection mode, configurable via the logic input pins S1 and S2. These pins allow system designers to manually select VIN1 or VIN2 or disable both switches.

The GLF4033A features low conduction resistance, enabling robust 4 A continuous current handling capability per channel. The device incorporates advanced cross-conduction protection that actively prevents current flow between input sources, maintaining isolation regardless of which power supply is active. The GLF4033A is ideally suited for power systems requiring an internal backup power supply.

GLF4033A

10 V, 4 A Power Mux IC with Manual Input Source Selection
