GLF1591LT

产品特性

Input Voltage Range

V_IN: 0.3 V to 5.5 V
Supply voltage range

V_BIAS: 1.5 V to 5.5 V
Ultra-Low On-Resistance, R_ON

30 mΩ Typ. at V_IN = 0.3 V, V_BIAS = 1.5 V ; 33 mΩ Typ. at V_IN = V_BIAS = 5.5 V
1.0 A Maximum Continuous Output Current
Quiescent Current, I_{Q_BIAS}

4 µA Typ. at V_IN = 0.3 V,V_BIAS = 1.5 V ; 5 µA Typ. at V_IN = 0.3 V, V_BIAS = 5.5 V
Shutdown Current, I_{SD_BIAS}

14 nA Typ. at _VBIAS = 3.3 V
Shutdown Current, I_{SD_VIN}

6 nA Typ. at V_IN = 5.5 V
Reverse Current Blocking When Disabled
Output Discharge Switch
Operating Temperature Range

- 40°C to + 85°C

产品手册

样品申请

产品描述

The GLF1591LT is a fully integrated 1 A load switch. The device is ideal for the mobile computing and data storage markets as a high-performance solution for load switch applications.

The GLF1591LT supports ultra-low VIN range applications, with an input supply voltage range of 0.3 V to 5.5 V and require an additional VBIAS power supply.

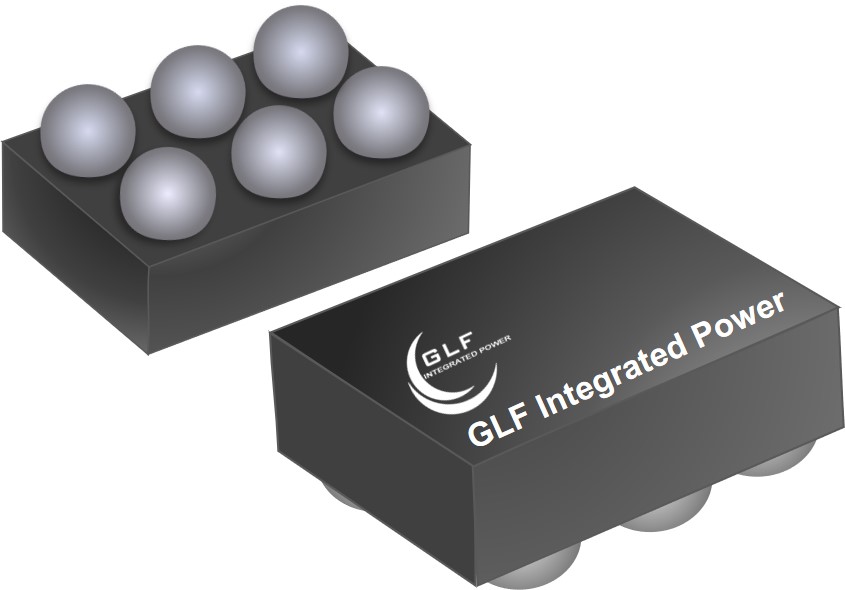

The GLF1591LT is available in a ultra-thin wafer level chip scale package (WLCSP) measuring 0.67 mm x 1.02 mm x 0.35 mm with a 0.35 mm pitch. This allows the user to save board space.

GLF1591LT

1 A Ultra-Low Input Voltage Power Load Switch
