Supply Voltage Range
0.8 V to 5.5 V
Continuous Output Current Capability
2 A
Low RON
33 mΩ Typ. at 5.5 VIN
Low Quiescent Current IQ
14 µA Typ. at 5 VN
Low Shutdown Current ISD
13 nA Typ. at 5 V IN
Programmable VOUT Rising Time, SR Pin
Quick Output Discharge Switch
Wide Operating Temp Range
- 40 °C to 105 °C

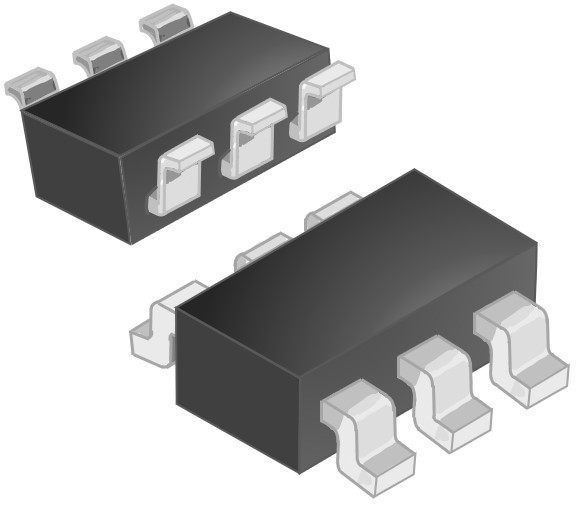

The GLF1531 is an ultra-efficiency integrated N-channel power protection switch, with a wide input range from 0.8 V to 5.5 V.
The GLF1531 provides the programmable output voltage (VOUT) rise time by an external capacitor on the SR pin. It limits the inrush current at start up condition and helps to minimize the voltage drop. The integrated output discharge FET discharges output voltage quickly when the device is disabled.
