Input Voltage Range
VIN: 0.6 V to 3.6 V
Supply voltage range
VBIAS: 2.5 V to 3.6 V
Ultra-Low On-Resistance
RON: 22 mΩ
5 A Maximum Continuous Output Current
Low Quiescent Current
IQ_BIAS: 15 µA at VBIAS = 3.3 V
Reverse Current Blocking during off state
Built-In Thermal Shutdown
Programmable VOUT Rise Time
Internal EN Pull-Down Resistor
Output Discharge Switch
The GLF1521 is an integrated load switch with a programmable slew rate control to provide variable output voltage rising times by an external capacitor to minimize inrush current.
The GLF1521 operates in an input range from 0.6 V to 3.6 V and supports 5 A maximum continuous output current. The GLF1521 features a low RON, quiescent current (IQ) and shutdown current (ISD), which support implementation of better system efficiency.

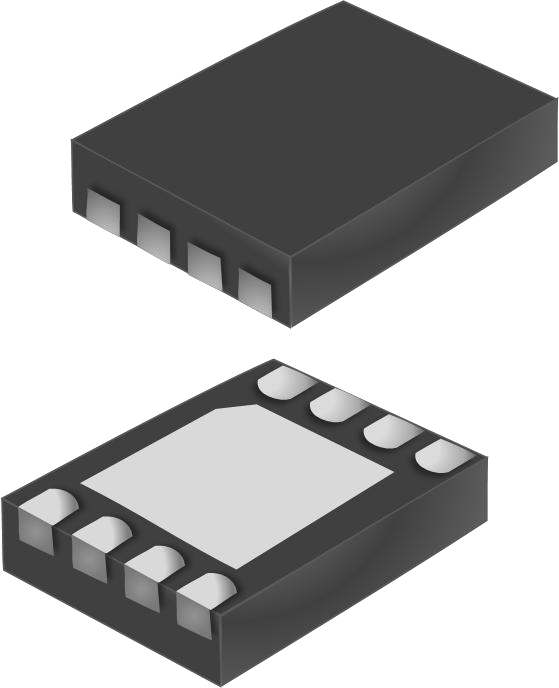

The GLF1521 is available in 2 mm x 2 mm DFN package with a thermal bad on the bottom for high power dissipation.
